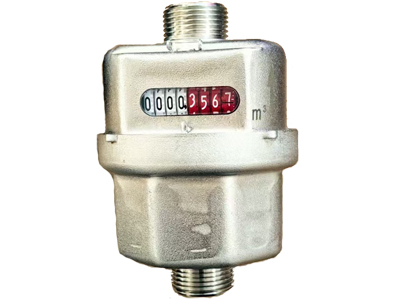

rotary piston stainless steel water mete

(volumetric water meter)

Model:LXH-15S~20S　　　　　　　　　　　　　　　　　　　　　　illustration

Application:
Measuring the volume of cold potable water passing through the pipeline

Quality:
•Optimum accuracy and performance at all times,in any position;
•Revolutionary grooved piston for improved,durability and performance;
•Durable tamperproof construction;
•Volumetric measurement by rotary piston method,wet mechanism,high accuracy,liquid-sealed reading.both horizontal and vertical type is available.
•Model LXH-15,20 is the world’s favourite domestic water meter,with over 50 million already in service in over 100 countries,and offers accuracy,long life,low maintenance and tamperproof operation.Available in sizes 15mm and 20mm,it offer unrivaled performance to ISO4064 Class C.

Working condition:
temperature:≤40℃
Pressure:≤1Mpa

Maximum Permissible Error
Qmin→Qt(ex Qt)=±5%;
Qt→Qs(both included)=±2%
Qmin=Min Flow, Qt=Transition Flow,
Qs= Max Flow.

ACCESSORIES
•With every meter, there will be one set couplings optional: 2pcs tube, 2pcs nut and 2pcs gasket.

NOTE
•Technical data conform to International Standard ISO4064
