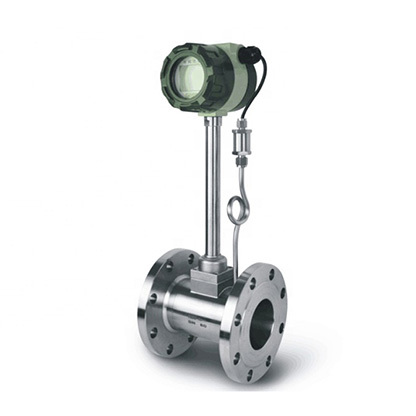

Vortex Flowmeter

Model:LUGB 　　　　　　　　　　　　　　　　　　　

Measure principle

Vortex flowmeter is volume flowmeter to produce for measuring the gas or steam or liquid or the standard volume flow or mass flow by Karman vortex principle. It's suitable for superheated steam ,saturated steam, and normal gas and liquid measurement.

Feature

1. The structure is simple and secure and reliable, and without moving parts, it’s very reliable to operation long time.

2. Simple installation and convenient maintenance.

3. The detection sensor doesn’t directly the measured medium, the performance is reliable and the life is very long.

4. The output and flow is the pulse signal of the direct proportion, with the stable zero and high accuracy.

5. The measurement range is very wide, the range rate can attain 1:10.

6. The pressure loss is small, and the freight is low, it can save energy.

7. The flow signal can be transmitted over a long distanceand it can be networked with a computer to realize centralized management.

8. The flow signal can be transmitted over a long distanceand it can be networked with a computer to realize centralized management.

9. Intelligent LCD converterLCD displayinstantaneous/cumulative flowand flow rate are displayed on the same screen.

10. 304 stainless steel materialbuilt through a multi-layer processall solid-state designcan be used for a long time in harsh environments.

Used

it’s mainly used for flow measure of fluid medium in the industrial piping,for example the gas, liquid , steam and so on.

Technical parameters
